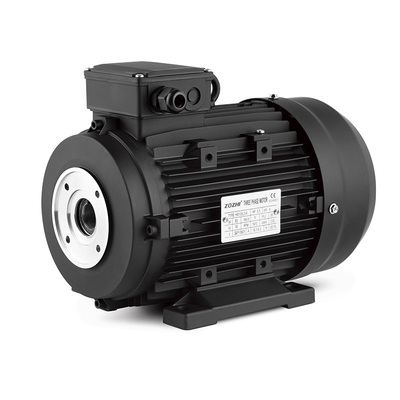

Three Phase Asynchronous Hollow Shaft Electric Motor AC Induction Motor For Washing Machine
無料サンプルとクーポンについては、私に連絡してください。
ワッツアップ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。
x商品の詳細
| 定数周波数 | 50Hz/60Hz | マウントタイプ | IMB3/IMB5 |
|---|---|---|---|
| 騒音レベル | ≤75dB | 効率性 | ≥IE2 |
| 定位電圧 | 220V/380V/440V/550V/660V | 高さ | ≤1000m |
| 隔熱クラス | F/H | エンジンの種類 | インダクション |
| ハイライト | AC Induction Motor For Washing Machine,Three Phase Hollow Shaft Electric Motor,Washing Machine Hollow Shaft Electric Motor |
||
製品の説明
Product Description:
The Hollow Shaft Motor is an ideal choice for high-pressure pumps, pressure washing machines and other industrial applications. Featuring a lightweight aluminum alloy housing, this three-phase asynchronous motor offers reliable performance with a rated power of 0.55KW and a rated torque of 2.2N.m. Its FAN cooling method ensures maximum safety and efficiency, and its weight of only 2.5kg makes it easy to install and transport.
Features:
- Product Name: Hollow Shaft Motor
- Rated Power: 0.55KW
- Rated Torque: 2.2N.m
- Housing Material: Aluminum Alloy
- Insulation Class: F
- Weight: 2.5kg
- Application: Ideal for three phase asynchronous motor, high pressure pump and pressure washing machine.
Application
The direct coupling between the motor and high-pressure pump, ideal for pressure cleaners and washing plants, significantly reduces the machine's overall size and provides a reliable and cost-efficient solution. We have a wide range of flanges and shafts suitable for direct coupling with most of the pumps on the market today.
Advantage
Popular motor to support you to win the market
High-Efficiency Motor High-standard material with 100% output
Population Motor Get good feedback from customer
OEM & ODM Customized service
Direct manufacturer 24 hours online service
3 Years Warranty Almost without any after service
7 days shipment Stock Material
Relate Products
|
|
|
|
Hollow Shaft Motor Three Phase Motor |

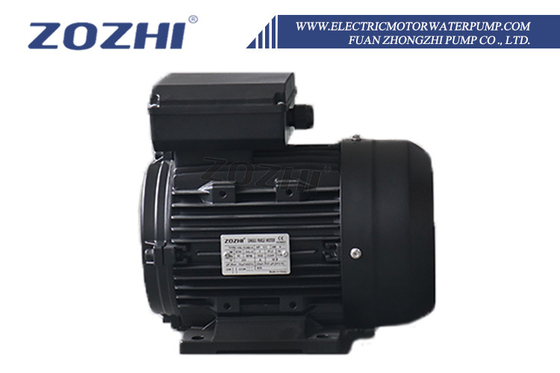

Hollow Shaft Motor Single Phase Motor |
Solid Shaft Motor 3 Phase Motor |
|
|
|
|
Solid Shaft Motor Mono phase Motor |
Solid Shaft Motor AC induction single-phase motor |
Electric Centrifugal Switch For Single Phase Motor |
Factory Picture
Customer Feedback
Technical Data
Three-Phase Hollow Shaft Motor 400V 50Hz (IE1/IE2/IE3)
| FRAME | POWER | RPM | COSφ | EFF.% | VOLT | AMPERE | |
| K.W. | HP | P.F. | V | A | |||
| HS90L1-2 | 2.2 | 3 | 2820 | 0.86 | 78 | 400 | 4.9 |
| HS90L2-2 | 3 | 4 | 2820 | 0.86 | 78 | 400 | 6.6 |
| HS90L3-2 | 3.7 | 5 | 2820 | 0.80 | 83 | 400 | 8.6 |
| HS100L1-2 | 3 | 4 | 2840 | 0.83 | 81 | 400 | 7 |
| HS100L2-2 | 4 | 5.5 | 2850 | 0.86 | 82 | 400 | 8.5 |
| HS100M1-2 | 4 | 5.5 | 2830 | 0.84 | 82 | 400 | 9.4 |
| HS112M2-2 | 5.5 | 7.5 | 2840 | 0.85 | 83 | 400 | 11.7 |
| HS132S1-2 | 5.5 | 7.5 | 2890 | 0.86 | 84 | 400 | 11.6 |
| HS132S2-2 | 7.5 | 10 | 2900 | 0.86 | 84 | 400 | 15.4 |
| HS132M1-2 | 11 | 15 | 2920 | 0.88 | 86 | 400 | 21.8 |
| HS132M2-2 | 15 | 20 | 2920 | 0.88 | 86 | 400 | 29.3 |
| HS160M1-2 | 15 | 20 | 2920 | 0.87 | 88 | 400 | 28 |
| HS160M2-2 | 18.5 | 25 | 2920 | 0.87 | 89 | 400 | 34 |
| HS160M3-2 | 22 | 30 | 2920 | 0.87 | 89.2 | 400 | 41 |
| HS90L1-4 | 1.5 | 2 | 1400 | 0.82 | 78 | 400 | 3.4 |
| HS90L2-4 | 2.2 | 3 | 1400 | 0.79 | 77 | 400 | 5.4 |
| HS90L3-4 | 2.6 | 3.5 | 1400 | 0.80 | 78 | 400 | 7.4 |
| HS100L1-4 | 2.2 | 3 | 1400 | 0.80 | 81 | 400 | 5.1 |
| HS100L2-4 | 3 | 4 | 1410 | 0.80 | 81 | 400 | 6.9 |
| HS100L3-4 | 4 | 5.5 | 1420 | 0.80 | 82 | 400 | 9.4 |
| HS100M1-4 | 4.4 | 6 | 1420 | 0.82 | 83 | 400 | 10 |
| HS112M1-4 | 4 | 5.5 | 1420 | 0.80 | 83 | 400 | 9 |
| HS112M2-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 12.1 |
| HS112M3-4 | 6.2 | 8.5 | 1425 | 0.82 | 84 | 400 | 13.5 |
| HS112L-4 | 7 | 9.5 | 1430 | 0.80 | 85 | 400 | 13.8 |
| HS132S1-4 | 5.5 | 7.5 | 1430 | 0.82 | 84 | 400 | 11.7 |
| HS132S2-4 | 7.5 | 10 | 1430 | 0.84 | 84 | 400 | 15.4 |
| HS132M1-4 | 9.2 | 12.5 | 1430 | 0.90 | 85 | 400 | 17.8 |
| HS132M2-4 | 11 | 15 | 1430 | 0.90 | 87 | 400 | 21.3 |
| HS132M3-4 | 12.5 | 17 | 1430 | 0.88 | 84 | 400 | 26 |
| HS160M1-4 | 15 | 20 | 1450 | 0.86 | 89 | 400 | 29 |
| HS160M2-4 | 18.5 | 25 | 1450 | 0.86 | 90 | 400 | 34 |
| HS90L-6 | 1.1 | 1.5 | 910 | 0.72 | 72 | 400 | 3.2 |
| HS100L-6 | 1.5 | 2 | 910 | 0.80 | 74 | 400 | 3.9 |
| HS112M1-6 | 2.2 | 3 | 940 | 0.80 | 80 | 400 | 5 |
| HS112M2-6 | 3 | 4 | 940 | 0.80 | 79 | 400 | 6.9 |
| HS132S1-6 | 3 | 4 | 940 | 0.78 | 80 | 400 | 6.9 |
| HS132S2-6 | 4 | 5.5 | 950 | 0.79 | 82 | 400 | 9 |
| HS132M1-6 | 5.5 | 7.5 | 950 | 0.79 | 83 | 400 | 12.4 |
| HS132M2-6 | 7.5 | 10 | 950 | 0.79 | 83 | 400 | 16.5 |
| HS160M1-6 | 7.5 | 10 | 960 | 0.77 | 87 | 400 | 16.5 |
| HS160M2-6 | 11 | 15 | 960 | 0.79 | 88 | 400 | 23 |
Installation Dimension
| FRAME | FLANGE | FRAME | ||||||||
| M | N | S | A | AC | B | H | HC | L | K | |
| 90L | 75/87 | 90/61 | 7/9 | 140 | 175 | 125 | 90 | 220 | 270 | 9.5 |
| 100L | 75/87 | 90/61 | 7/9 | 160 | 196 | 140 | 100 | 240 | 315 | 11 |
| 112M | 75/87 | 90/61 | 7/9 | 190 | 220 | 140 | 132 | 275 | 330 | 11 |
| 132S | 87 | 61 | 9 | 216 | 254 | 140 | 132 | 320 | 370 | 12 |
| 132M | 87 | 61 | 9 | 216 | 254 | 178 | 132 | 320 | 409 | 12 |
| 160M | 87 | 61 | 9 | 254 | 310 | 210 | 160 | 410 | 498 | 14.5 |
3 Years Warranty
Guarantee for 3 years from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
Certificate
RFQ
1. Q: What’s the MOQ? 2. Q: Are you a factory or trading company?
A: A trial sample order is ok. A: Manufacturer. Focus on motors for more than 15 years.
3. Q: Can you accept using our logo? 4. Q: How can I get the sample?
A: Yes, we can do OEM for you. A: Usually, we suggest express for samples.
5. Q: What’s the warranty period? 6. Q: What are your terms of payment?
A: 3 years from shipped on board date. A: 30% advance payment, balance before shipment.
- .
