Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers

起源の場所 中国
ブランド名 ZOZHI
証明 CE,CCC,ISO9001
モデル番号 HS112M2-4
最小注文数量 2個
価格 USD168-177piece
パッケージの詳細 CTNS/ヴェネール事件
受渡し時間 14作業日
支払条件 T/T、L/C
供給の能力 30日あたり10000個

無料サンプルとクーポンについては、私に連絡してください。

ワッツアップ:0086 18588475571

微信: 0086 18588475571

スカイプ: sales10@aixton.com

ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。

x
商品の詳細
ハイライト

Three-Phase Hollow Shaft Motor 3kw

,

Waterproof Aluminum Shell AC Motor

,

High Pressure Washer Induction Motor

メッセージ
製品の説明

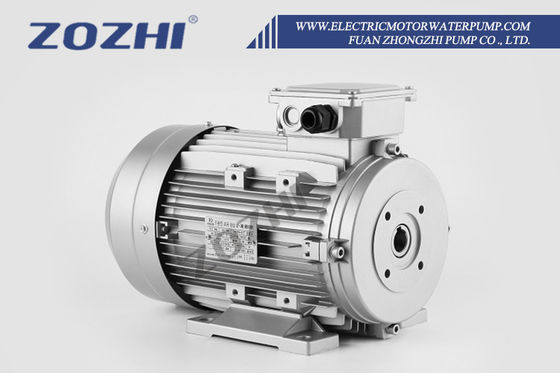

Three-Phase AC Induction Hollow Shaft Motor
3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers
Product Overview
Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 0 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 1 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 2 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 3 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 4 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 5 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 6 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 7 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 8 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 9
Technical Specifications
Brand Name ZOZHI
Type Asynchronous Motor
Phase Three phase
Frequency 50hz/60hz
Efficiency IE 1
Protection class IP55
Certification CCC/CE/ISO9001
Housing Aluminium
Insulation Class ClassF
Duty S1 (continuous)
Motor Bearing C&U
Flange Size 87/61mm or 75/90mm
Overall Dimensions
Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 10 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 11
Frame Size Specifications
Frame Size Flange Frame M N S A AC B H HC L K
90L 75/87 90/61 7 140 238 125 90 220 270 9.5
Performance Data
Single Phase 50Hz/2-pole
Frame Size Power (HP/KW) Speed (RPM) Power Factor (P.F.) Efficiency (%) Capacitor (μF) Voltage (V) Ampere (A)
HSL90L1-2 2.5HP/1.8KW 2850 0.95 65 50 230 12.7
Company Profile
Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 12

Established in 2006, Fuan Zhongzhi Pump Co., Ltd. The trademark registration "ZOZHI" has made it a modernized private enterprise. It is specialized in scientific research, production, sales and service, manufacturing various types of pumps, such as peripheral, centrifugal, jet, deep well, sewage pump, etc., as well as high-efficiency AC motors, alternators and diesel generators.

Zhongzhi pumps are widely utilized in shallow and deep well pumping, pipeline boosting, water tower boosting, garden irrigation, agricultural irrigation, and aquaculture drainage, etc.

Zhongzhi motors can be employed for general driving purposes, such as household appliances, pumps, fans, and recording meters, etc.

Zhongzhi generators are fully applied in communication systems, data centers, mining, power, highways, engineering companies, financial systems, hotels, railways, military, airports, commercial buildings, hospitals, factories, etc. We have established a global service system in collaboration with strategic partners. Our production of generator sets has become the backup power choice for the largest number of hotels, buildings, and industrial and mining enterprises.

Zhongzhi products are popular in over 70 countries including Europe, America, the Middle East, Africa, Southeast Asia, and others.

Motivated by our slogan "Solidarity, Exploration, Honest, Faith", we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.

Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 13 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 14 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 15
Packing & Delivery
Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 16 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 17
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 18 Three-Phase AC Induction Hollow Shaft Motor 3kw 4kw 5.5kw 7.5kw Aluminum Shell Waterproof High 1500rpm for High Pressure Washers 19
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.
Q2: Where is your factory?
Fuan city, Fujian province.
Q3: What is your terms of payment?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q4: What about delivery time?
Normally, 30 days after the receipt of payment.
Q5: About shipment?
By sea, By air and By express delivery.
Q6: About sample?
Available.
