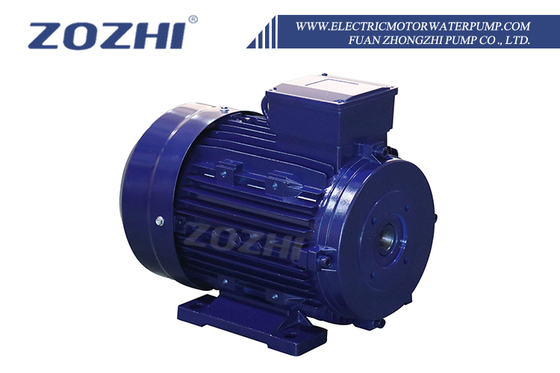

30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed

起源の場所 中国
ブランド名 ZOZHI
証明 CE,CCC,ISO9001
モデル番号 HS160L3-4
最小注文数量 2個
価格 USD570piece
パッケージの詳細 CTNS/ヴェネール事件
受渡し時間 14作業日
支払条件 T/T、L/C
供給の能力 30日あたり10000個

無料サンプルとクーポンについては、私に連絡してください。

ワッツアップ:0086 18588475571

微信: 0086 18588475571

スカイプ: sales10@aixton.com

ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。

x
商品の詳細
メッセージ
製品の説明
Product Description
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 0
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 1
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 2
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 3
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 4
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 5
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 6
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 7
Specification
Brand Name
ZOZHI
Type
Asynchronous Motor
Phase
Three phase
Frequency
50hz/60hz
Efficiency
IE 1
Protection class
IP55
Certification
CCC/CE/ISO9001
Housing
Aluminium
Insulation Class
ClassF
Duty
S1 (continuous)
Motor Bearing
C&U
Flange Size
87/61mm
Overall Dimension
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 8
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 9
Frame Size
Flange
Frame
M
N
S
A
AC
B
H
HC
L K
90L
75/87
90/61
7
140
238
125
90
220
270 9.5
100L
75/87
90/61
9
160
255
140
100
240
315 11
112M
75/87
90/61
9
216
326
140
132
265
330 11
132S
75/87
90/61
9
216
326
140
132
320
370 12
132M
75/87
90/61
9
216
326
178
132
320
409 12
160M
75/87
90/61
9
254
360
210
160
410
498 14.5
Frame Size
Power
(HP/KW)
Speed
(RPM)
Power Factor
(P.F.)
Efficiency
(%)
Capacitor
(μF)
Voltage
(V)
Ampere
(A)
Single Phase 50Hz/2-pole
HSL90L1-2
2.5HP/1.8KW
2850
0.95
65
50
230
12.7
HSL90L2-2
3HP/2.2KW
2840
0.99
72
60
400
13.4
HSL100L2
3HP/2.2KW
2850
0.96
74
85
400
15.3
Single Phase 50Hz/4-pole
HSL90L1-4
2HP/1.5KW
1400
0.98
70
45
230
9.5
HSL100L1-4
2.5HP/1.85KW
1390
0.97
68
55
230
12.2
HSL100L2-4
3HP/2.2KW
1350
0.99
74
70
230
13.1
HSL100L3-4
3.5HP/2.6KW
1350
0.96
74
80
230
17.5
HSL112M1-4
4HP/3KW
1400
0.98
74
80
230
18.1
HSL112M2-4
5HP/3.7KW
1410
0.96
76
100
230
22
Three Phase 50Hz/2-pole
HS90L1-2
3HP/2.2KW
2820
0.86
78
-
400
4.9
HS90L2-2
4HP/3KW
2820
0.86
78
-
400
6.6
HS90L3-2
5HP/3.7KW
2820
0.80
83
-
400
8.6
HS100L1-2
4HP/3KW
2840
0.83
81
-
400
7
HS100L2-2
5.5HP/4KW
2850
0.86
82
-
400
8.5
HS100M1-2
5.5HP/4KW
2830
0.84
82
-
400
9.4
HS112M2-2
7.5HP/5.5KW
2840
0.85
83
-
400
11.7
HS132S1-2
7.5HP/5.5KW
2890
0.86
84
-
400
11.6
HS132S2-2
10HP/7.5KW
2900
0.86
84
-
400
15.4
HS132M1-2
15HP/11KW
2920
0.88
86
-
400
21.8
HS132M2-2
20HP/15KW
2920
0.88
86
-
400
29.3
HS160M1-2
20HP/15KW
2920
0.87
88
-
400
28
HS160M2-2
25HP/18.5KW
2920
0.87
89
-
400
34
HS160M3-2
30HP/22KW
2920
0.87
89.2
-
400
41
Three Phase 50Hz/4-pole
HS90L1-4
2HP/1.5KW
1400
0.82
78
-
400
3.4
HS90L2-4
3HP/2.2KW
1400
0.79
77
-
400
5.4
HS90L3-4
3.5HP/2.6KW
1400
0.80
78
-
400
7.4
HS100L1-4
3HP/2.2KW
1400
0.80
81
-
400
5.1
HS100L2-4
4HP/3KW
1410
0.80
81
-
400
6.9
HS100L3-4
5.5HP/4KW
1420
0.80
82
-
400
9.4
HS100M1-4
6HP/4.4KW
1420
0.82
83
-
400
10
HS112M1-4
5.5HP/4KW
1420
0.80
83
-
400
9
HS112M2-4
7.5HP/5.5KW
1430
0.82
84
-
400
12.1
HS112M3-4
8.5HP/6.2KW
1425
0.82
84
-
400
13.5
HS112L-4
9.5HP/7KW
1430
0.80
85
-
400
13.8
HS132S1-4
7.5HP/5.5KW
1430
0.82
84
-
400
11.7
HS132S2-4
10HP/7.5KW
1430
0.84
84
-
400
15.4
HS132M1-4
12.5HP/9.2KW
1430
0.90
85
-
400
17.8
HS132M2-4
15HP/11KW
1430
0.90
87
-
400
21.3
HS132M3-4
17HP/12.5KW
1430
0.88
84
-
400
26
HS160M1-4
20HP/15KW
1450
0.86
89
-
400
29
HS160M2-4
25HP/18.5KW
1450
0.86
90
-
400
34
Three Phase 50Hz/6-pole
HS90L-6
1.5HP/1.1KW
910
0.72
72
-
400
3.2
HS100L-6
2HP/1.5KW
910
0.80
74
-
400
3.9
HS112M1-6
3HP/2.2KW
940
0.80
80
-
400
5
HS112M2-6
4HP/3KW
940
0.80
79
-
400
6.9
HS132S1-6
4HP/3KW
940
0.78
80
-
400
6.9
HS132S2-6
5.5HP/4KW
950
0.79
82
-
400
9
HS132M1-6
7.5HP/5.5KW
950
0.79
83
-
400
12.4
HS132M2-6
10HP/7.5KW
950
0.79
83
-
400
16.5
HS160M1-6
10HP/7.5KW
960
0.77
87
-
400
16.5
HS160M2-6
15HP/11KW
960
0.79
88
-
400
23
Company Profile

01:41

03:19

30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 10
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 11
Established in 2006, Fuan Zhongzhi Pump Co., Ltd. The trademark registration "ZOZHI" has made it a modernized private enterprise.It is specialized in scientific research, production, sales and service, manufacturing various types of pumps, such as peripheral,centrifugal, jet, deep well, sewage pump, etc., as well as high-efficiency AC motors, alternators and diesel generators.

Zhongzhi pumps are widely utilized in shallow and deep well pumping, pipeline boosting, water tower boosting, garden irrigation,agricultural irrigation, and aquaculture drainage, etc.

Zhongzhi motors can be employed for general driving purposes, such as household appliances, pumps, fans, and recording meters,etc.

Zhongzhi generators are fully applied in communication systems, data centers, mining, power, highways, engineering companies,financial systems, hotels, railways, military, airports, commercial buildings, hospitals, factories, etc. We have established a global service system in collaboration with strategic partners. Our production of generator sets has become the backup power choice for the largest number of hotels, buildings, and industrial and mining enterprises.

Zhongzhi products are popular in over 70 countries including Europe, America, the Middle East, Africa, Southeast Asia, and others.

Motivated by our slogan "Solidarity, Exploration, Honest, Faith", we strive to become the global leader in providing comprehensive and reliable solutions to make this world a better place to live in.
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 12
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 13
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 14
Packing & Delivery
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 15
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 16
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 17
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 18
Related Products
Our Customer
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 19
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 20
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 21
FAQ
Q1 Are you a manufacturer or a trading company?
We are a manufacturer of water pump and motor in China.
Q2 Where is your factory?
Fuan city, Fujian province.
Q3 What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance
before shippment.
Q4 What about delivery time?
Normally, 30 days after the receipt of payment.
Q5 About shipment?
By sea, By air and By express delivery.
Q6 About sample?
Available.
30HP 22KW AC Electric Induction Motors 24mm Hollow Shaft 1000rpm Three-Phase 50Hz Frequency 380V AC Aluminium 60Hz Enclosed 22
