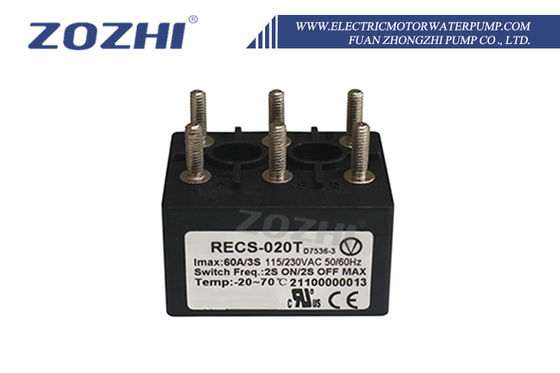

RECS-020T Electronic Centrifugal Switch with 0-70℃ Temperature Range 2S ON/2S OFF MAX Frequency and 1 Million Cycle Lifespan
無料サンプルとクーポンについては、私に連絡してください。
ワッツアップ:0086 18588475571
微信: 0086 18588475571
スカイプ: sales10@aixton.com
ご不明な点がございましたら、24 時間対応のオンライン ヘルプをご利用ください。
x商品の詳細
| 温度 | 0-70℃ | 証明 | CE |
|---|---|---|---|
| 最大電流 | 60A/3S | スイッチ周波数 | 最大2秒/2秒 |
| 電圧 | 115/230V | ||
| ハイライト | 0-70℃ Temperature Electronic Centrifugal Switch,2S ON/2S OFF MAX Frequency ECS,1 Million Cycle Lifespan Motor Centrifugal Switch |
||
製品の説明
RECS-020T Electronic Centrifugal Switch Motor Accessories
Electronic centrifugal switch designed for fans and blowers. This solid-state replacement eliminates common mechanical switch failures while providing enhanced reliability and performance.
Basic Specifications
| Model Number | RECS-020T |
| Brand Name | ZOZHI |
| Imax | 60A/3S |
| Rated Volt | 115/230V |
| Temp | 0-70℃ |
| Frequency | 50/60Hz |
| Material | Plastic |
| Size | 5.4*4.2*3.5cm |
| Switch Frequency | 2S ON/2S OFF MAX |
Product Overview
Traditional single-phase AC motors use mechanical centrifugal switches that suffer from tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Our Electronic Centrifugal Switch (ECS) provides a reliable solid-state alternative that monitors speed, voltage/current, and phase to precisely control switching operations.
Key Features
- Compact design with small package size
- Exceptional durability with 1 million cycle lifespan
- Universal compatibility with auto-matching for different motors
- Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
- 50Hz/60Hz operation capability
- Silent operation with no switching noise or contact trembling
- High compatibility with both general-purpose and application-specific motors
- Simple installation and maintenance, fits standard motor frames
- Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
- Automatic starting capacitor discharge
- Certified to ROHS, CE, and UL standards
Technical Specifications
| Parameter | Value | Unit | Package (mm) |
|---|---|---|---|
| Rated Voltage | 115V/230V | V AC | P: 72L×31W×23H S: 52L×50W×24H C: CAP Case 46Dia×86L |
| Max. Start Peak current (20ms, TC=25℃) | 100A (RECS-105/205) 200A (RECS-120/220) 400A (RECS-140/240) 600A (RECS-160/260) |
A | |
| Max. Start Peak current (3.0S, TC=25℃) | 30A (RECS-105/205) 60A (RECS-120/220) 120A (RECS-140/240) 180A (RECS-160/260) |
A | |
| Initial switch-on delay time | 80 | mS | |
| Restart delay time (TC=25℃) | 5 | S | |
| ON/OFF Frequency | 0.2 | Cycle/S | |
| Ambient air temperature | 0-70 | ℃ | |
| Dielectric strength (between case and lines) | ≥2500 | V DC |
Model Specifications
| Model Type | Volt Range | Max peak current | Imax(3s) | Power Range |
|---|---|---|---|---|
| RECS-205P | 160-264VAC | 30A | Ima≤15A | 0-550W |
| RECS-220P | 160-264VAC | 60A | Ima≤35A | 600-2200W |
| RECS-240P | 160-264VAC | 120A | Ima≤75A | 2200-4300W |
| RECS-105P | 85-132VAC | 30A | Ima≤15A | 0-330W |
| RECS-120P | 85-132VAC | 60A | Ima≤35A | 300-1100W |
| RECS-140P | 85-132VAC | 120A | Ima≤75A | 1100-2200W |
| RECS-020T | 85-264VAC | 60A | Ima≤35A | 110V 300-1100W 220V 600-2200W |
